  COLDALLI  SYSTEM  s.a.r.l
our company is specialized in the manufacture, design and installation of refrigeration equipment such as sandwich panels, cold rooms, refrigerated doors & shelves for cold rooms since 2005

notre société est spécialisée dans la fabrication, la conception et l'installation de matériels frigorifiques tels que panneaux sandwichs, chambre froides, portes frigorifique & rayonnages pour chambres froides depuis 2005


The door on hinge BT and TN is used for cold rooms with normal temperature down to -40 °/0° C.

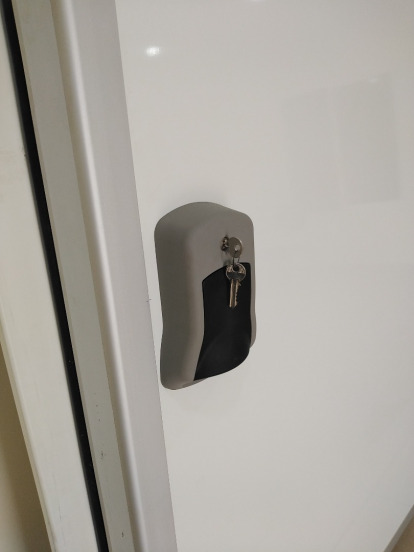

Made with a monolithic leaf injected with high-density polyurethane foam, it is supplied on a PVC or coated wood frame. It is equipped with an ergonomic external handle that is easy to open with a lock and an internal safety release device. The hinges are equipped with a ramp to facilitate the pad during closing and opening.

The door tightness is guaranteed by expanded EPDM gaskets mounted in the perimeter of the leaf with a 220V resistance installed.

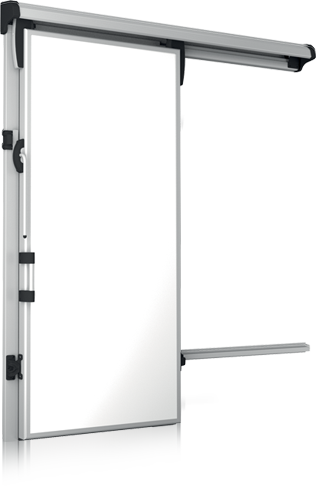

The BT and TN sliding door is used for cold rooms with negative temperature down to -20 ° C.

Made with a monolithic leaf injected with high-density polyurethane foam, it is supplied on a PVC or coated wood frame. It is equipped with a practical external stainless steel handle and a fixed handle or internal lever to facilitate opening. On request this model can be equipped with a lock with key.

The seal of the door is guaranteed by expanded EPDM gaskets mounted in the perimeter of the leaf with a 220V heating resistance inserted; on request it can be mounted on the frame and on the threshold

The lateral sliding system is equipped with anodized aluminum guides and trolleys with accessories in stainless material.

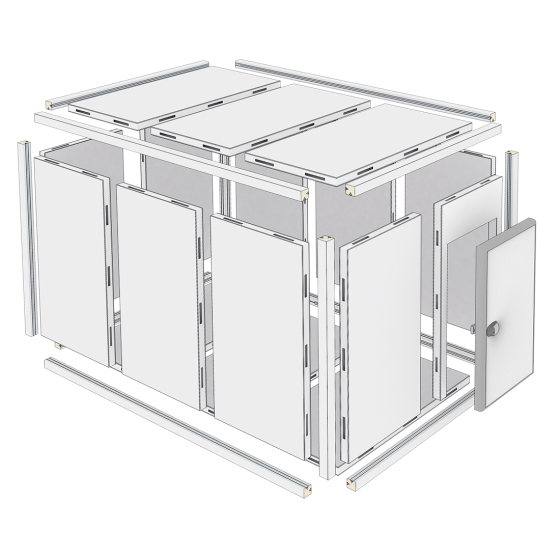

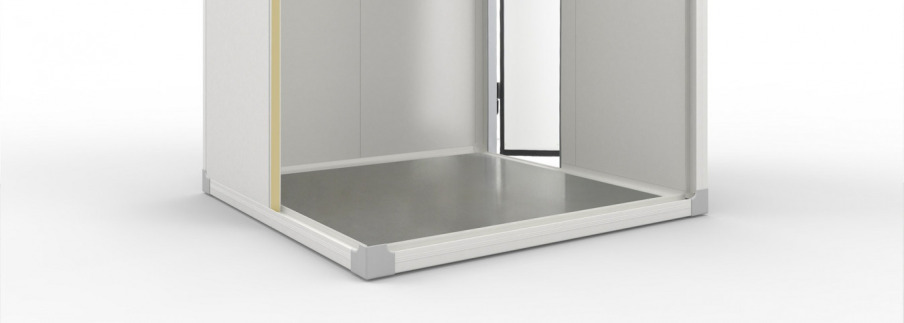

Macro System is a range of modular and modular cold rooms capable of satisfying multiple needs of use. Macro cells are built with a system of sandwich panels in polyurethane foam (density 40 + -2 Kg / m3) with 200 mm modularity thus allowing the creation of small, medium and large capacity volumes with maximum flexibility. On request we can also make customized cells.

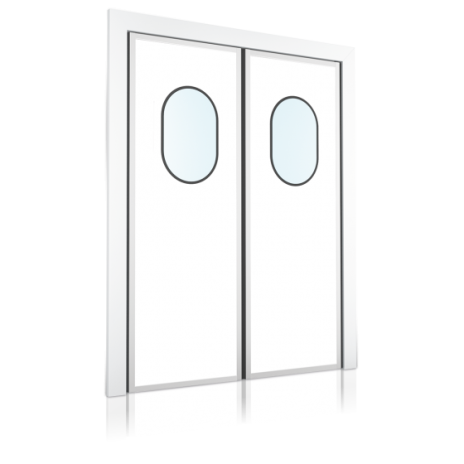

The to and fro doors, available with one or two leaves, are ideal for areas with intense traffic, both pedestrian and with trolleys. Polistamp to and fro doors are made up of a PVC or wood frame covered with sheet metal (pre-painted or plasticized or in stainless steel).

The doors are made up of a 40mm expanded polystyrene panel. The sheet metal of the panel can be in AISI 304 stainless steel, pre-painted, plasticized or in fiberglass. On each door there is a porthole in stratified glass 33.2, which on request can be replaced with plexyglass sp. 5 mm.

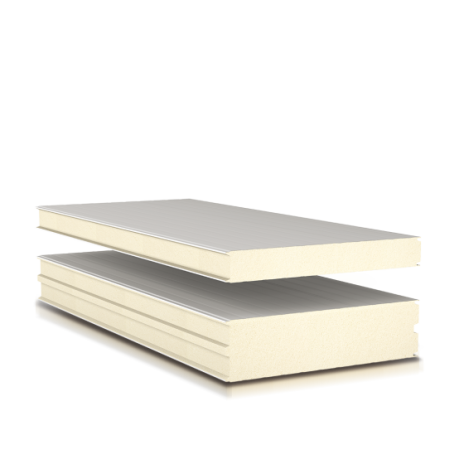

The  "COLDALLI" panels designed for the construction of industrial cold rooms and their strong point is the good insulation capacity.

The dry joint with tooth and double tooth guarantees excellent insulation, eliminating the interruption of the thermal bridge and the formation of condensation.

The insertion of eccentric hooks on request, give the joint a better seal and impermeability to air.

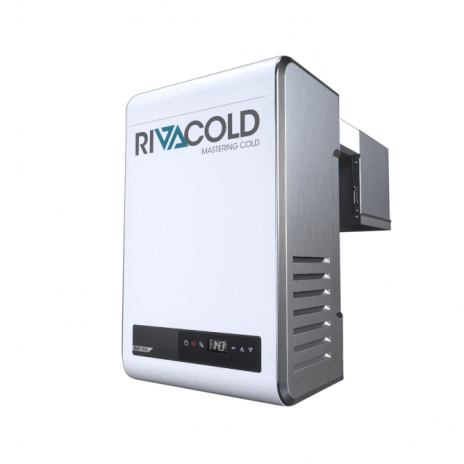

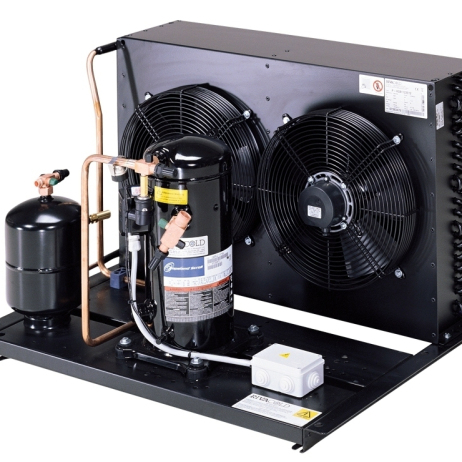

COLDALLI SYSTEM is in direct contact with many world manufacturers, also with the largest and most efficient manufacturer / supplier in Europe. Such as RIVACOLD, the leader in the manufacture of bodywork refrigeration units and refrigeration units, and high quality evaporators, which meets the new requirements of the refrigeration professionals of tomorrow. The very wide standard range as well as the production of customized units allow you to meet all needs. The quality of the components and finishing accessories for our installations as well as of the cooling unit, all equipped with compressors synonymous with qualities, such as BITZER, COPELAND, DORIN, FRASCOLD….… .. is will assure you optimum reliability. Your time being precious, the speed of installation and the uniformity of the range will guarantee you performance and competitiveness.
